Foldable 48MP 4K 1080P HDMI USB Digital Video Microscope Camera 150X C-mount Industrial Soldering Jewelry Microscopio 13MP VGA
SPECIFICATIONS
13Mp 48mp camera for microscope: microscope trinocular Cameras
Brand Name: Nice-power
Certification: CE,EAC,EPA,FCC
Drawtube: Monocular
Features: High Definition,Handheld,Portable,Digital
Hign-concerned Chemical: None
Is Smart Device: No
Magnification Ratio: 500X & Under
Material: Metal
Model Number: 13Mp 48Mp Camera Set
NICE-POWER Model: XHU4002
Origin: Mainland China
Theory: Video Microscope
digital microscope for electronics: digital microscope
microscope for soldering: microscope for smartphone 48mp
not binocular microscope: Not stereo microscope
soldering microscope 13mp vga hdmi: electron microscope
We will arrange suitable plugs based on your order address, and you can also leave a message, friend.
Your Packing list:
1 * Microscope camera
1 * Microscope lens
1 * LED light
1 * Folding bracket
1 * Instruction manual
1 * Type-C cable
1 * HDMI cable
1 * Power cord
1 * C port to CS port adapter ring (HDMI USB 48MP Set)
1 * Free Software (not included in the package, please contact customer service for assistance)
Product Description: 48MP HDMI USB 4K camera:
Model: camera with HDMI USB2.0 two outputs
Image sensor: 48 megapixel Panasonic sensor
Frame speed: 1920*1080 60F/S @ HDMI output
Video saver Movie Size: 4K(25FPS) 2K(30fps) 1080P(60fps) 720P(60fps)(Note: If you need to record 4K or 2K video, you need to use an SDHC class10 TF card.)
Housing: all metal

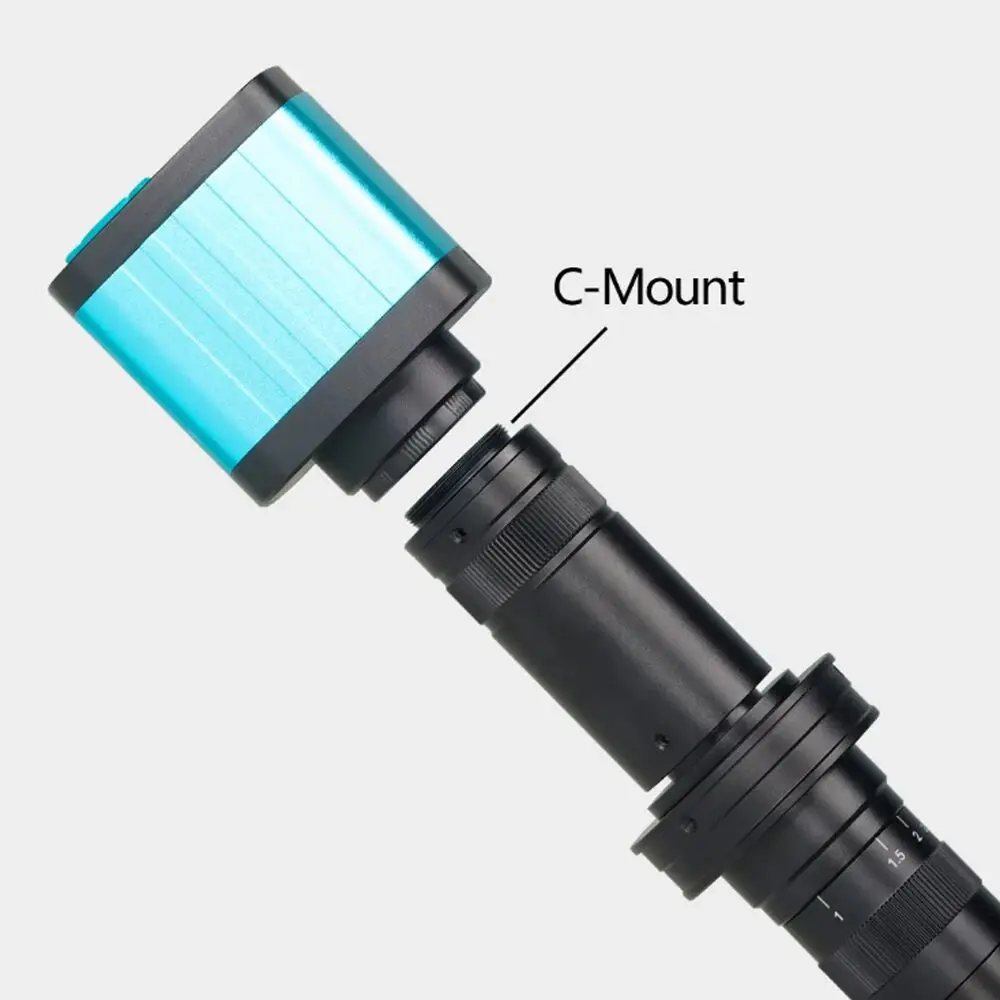

Support: C-mount lens
Digital Zoom: 5 times digital zoom
White Balance: auto/manual
Cross cursor: supports multicolor, size can be adjusted
TF card interface: max 32G
Video format: MOV
HDMI interface: HDMI/USB output
Image: 48M 8000x6000/38M 7168X5376/26M 5888X4416/20M 5120X3840/16M 4608X3456
Language: Mandarin/English
Mirroring: Support
Frequency: 50Hz/60Hz
Monitors:16:9/16:10/4:3
Grid Lines: 15 Horizontal lines, 15 vertical lines, center scale line, custom color, size
Power supply: 5-12v 1A
1X-150X magnification C-mount lens:
Working distance: 50mm-1000mm
Magnification ratio: 1 : 15
Power magnification with 0.15- 2X (approx. 1-150x on screen)
View field multiple maximum: 4.2mm*2.4mm
View area Min multiple: 130mm*70mm
Size: 30mm(diameter)*99mm(length)
Weight: 195g
56 bright white LED lights:
100,000 hours of life
Intense and focused shadow-free lighting
Brightness 0-100% adjustable, high brightness
Variable intensity control
Power input: 90-260V, 50-60HZ
Suitable for lens diameter: 30mm-63mm
Working distance: 400mm

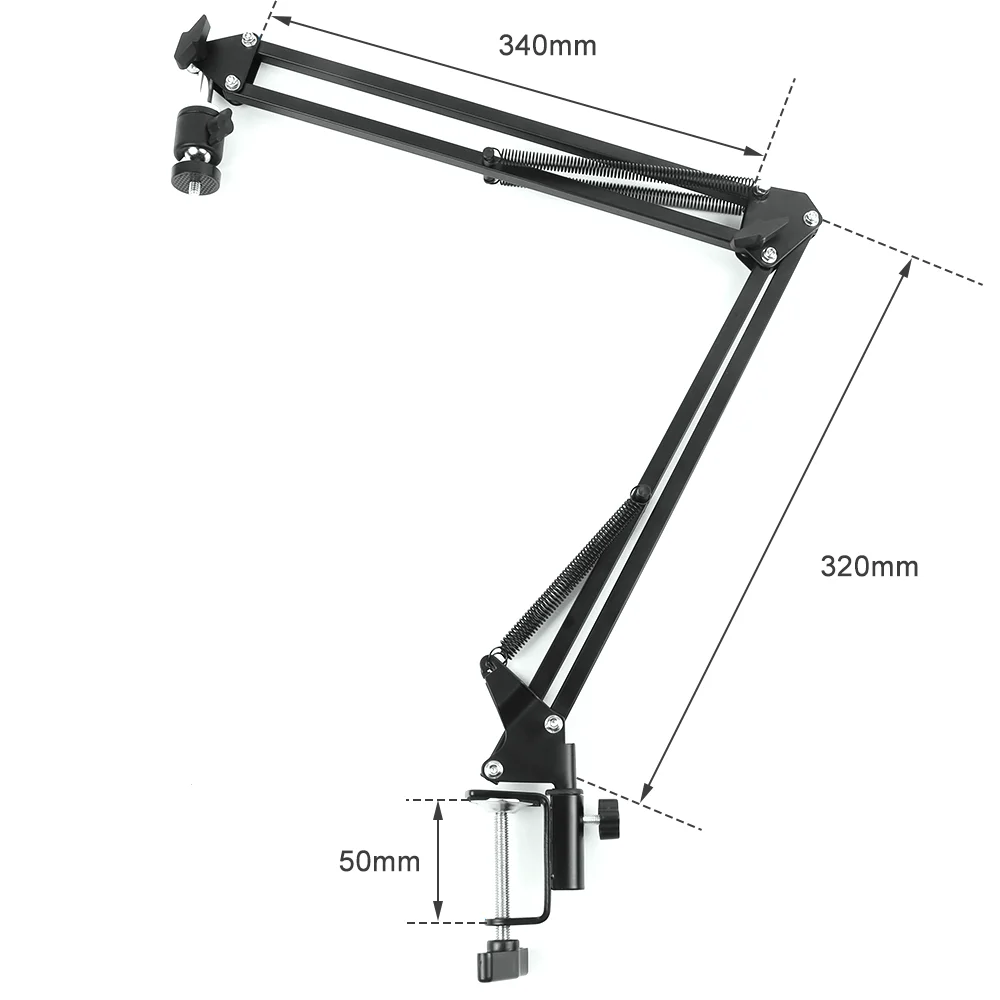

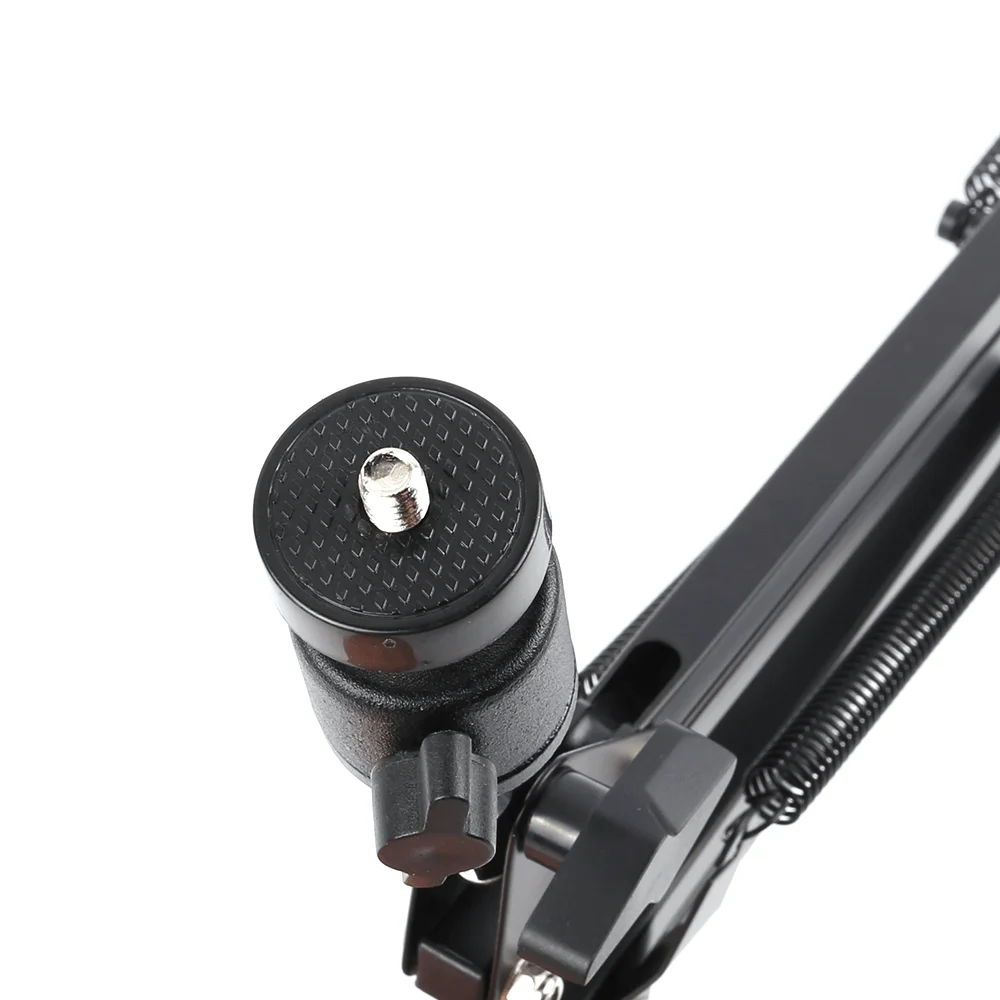

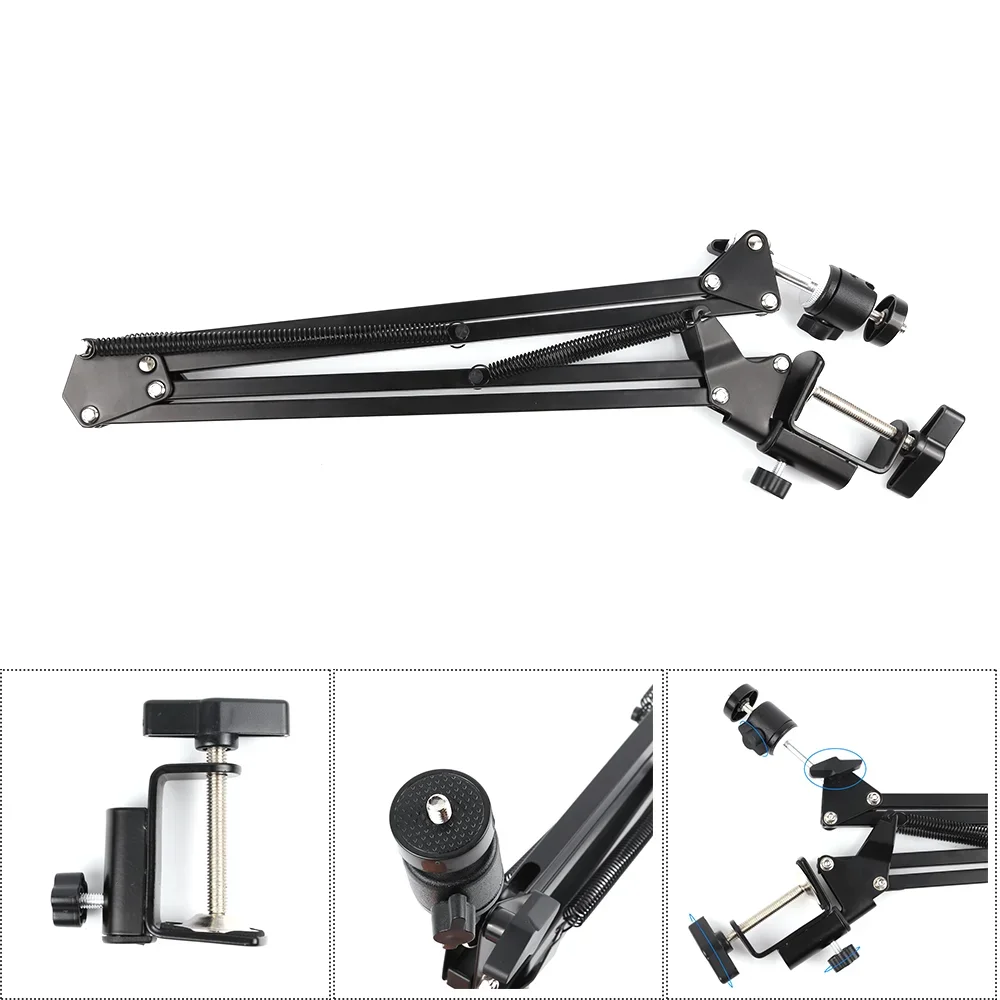

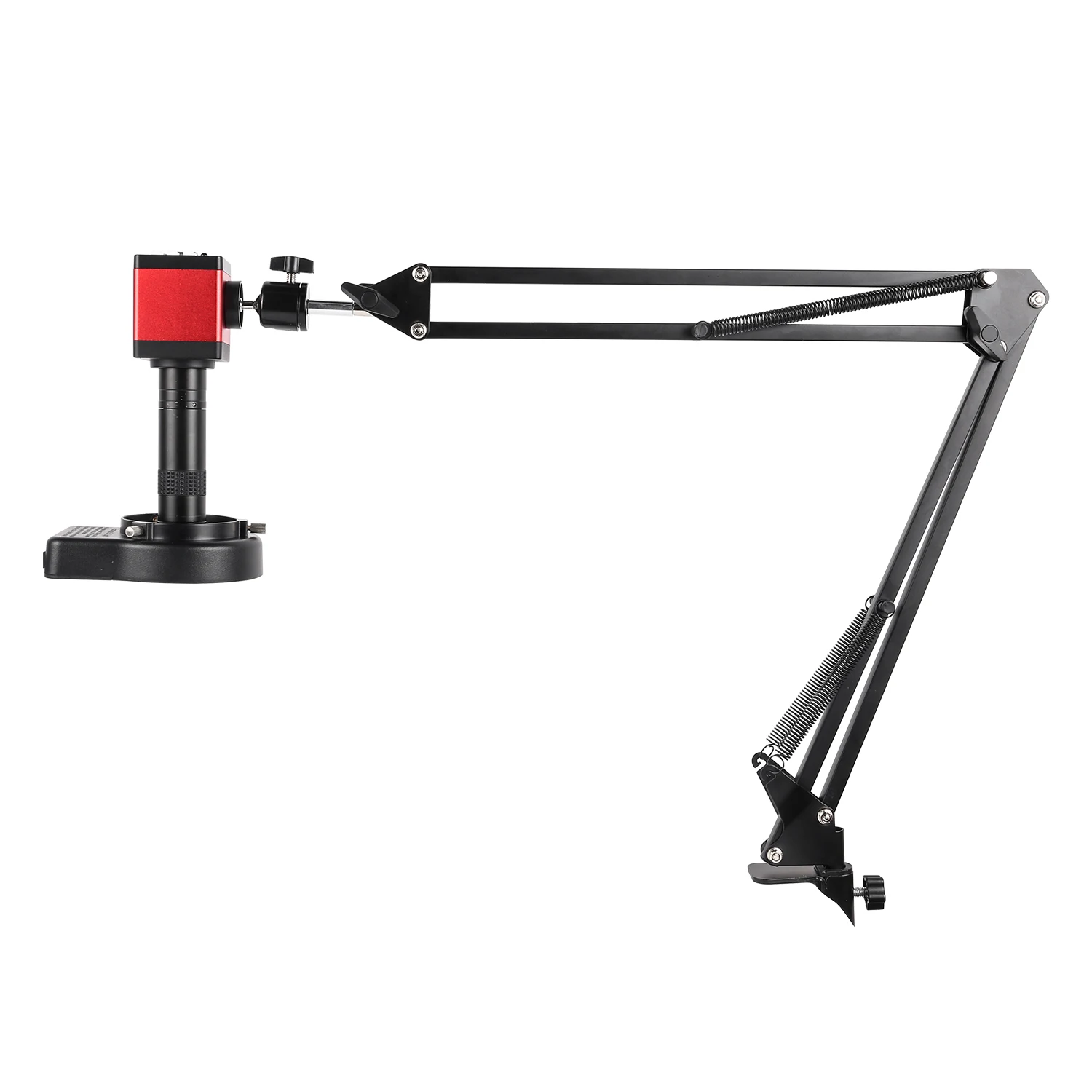

Adjustable bracket:
Size: 340mm + 320mm
Maximum thickness of mounting bracket: 50mm
It is recommended that when the working distance exceeds 40cm, use a work desk lamp to fill light.

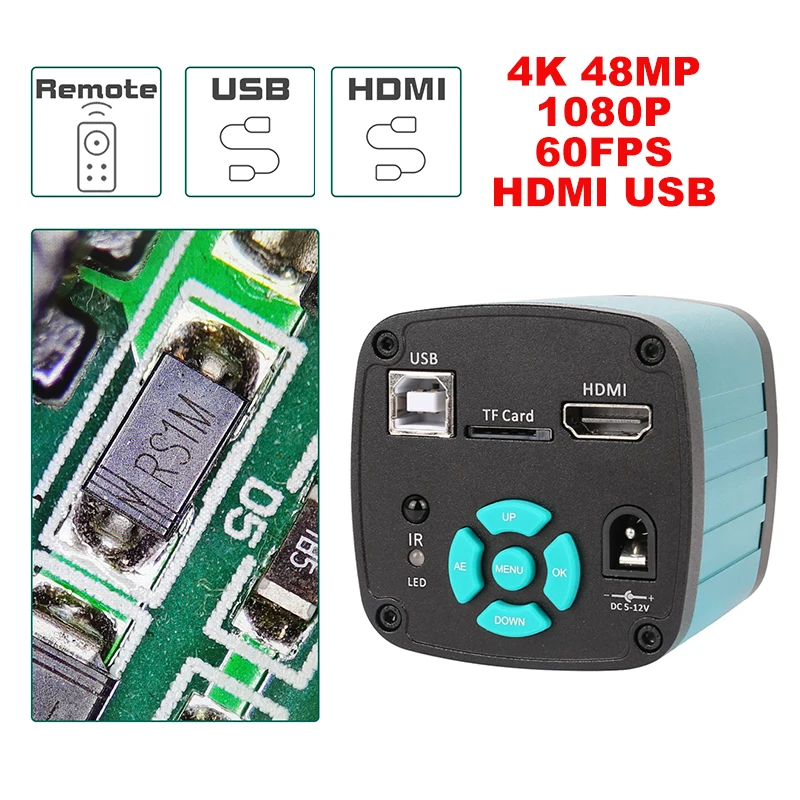

48MP HDMI USB 4K Camera As Below

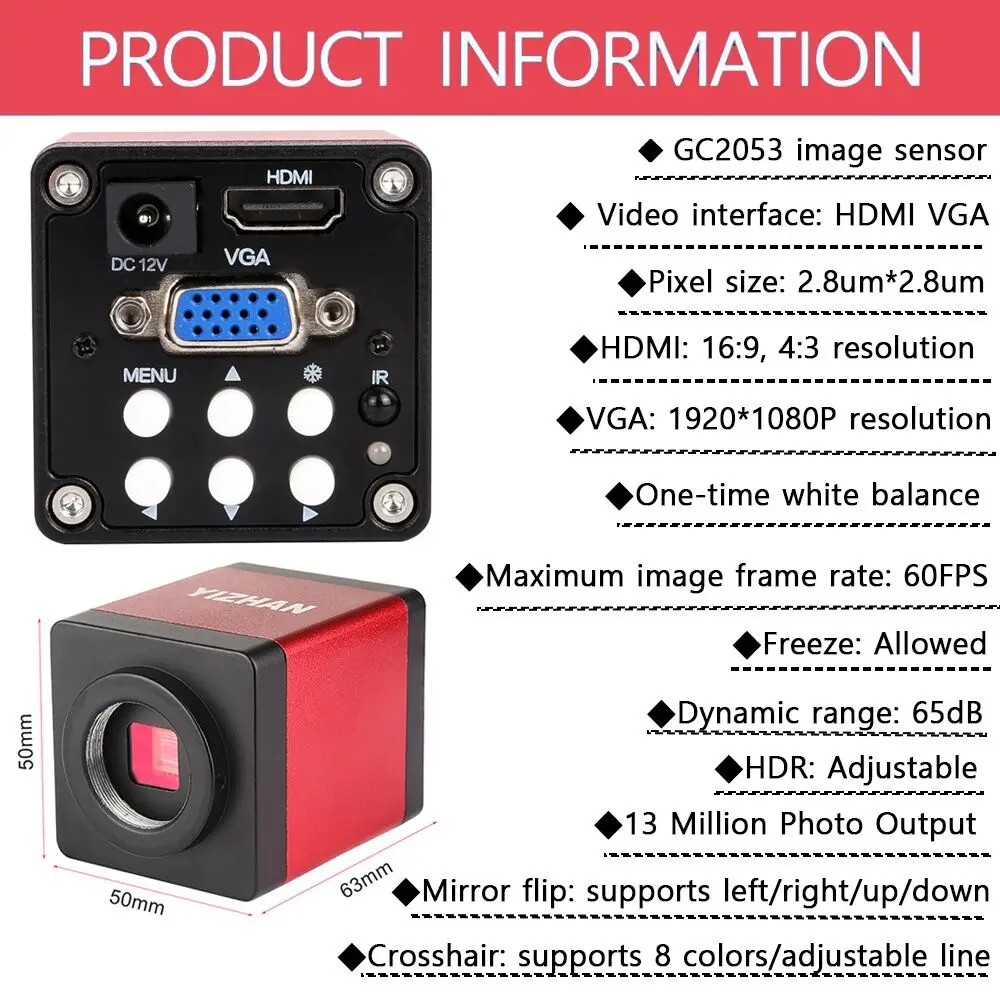

HDMI VGA 13MP As Below:
Camera parameters
Video Interface: HDMI VGA
Sensor: gc2053

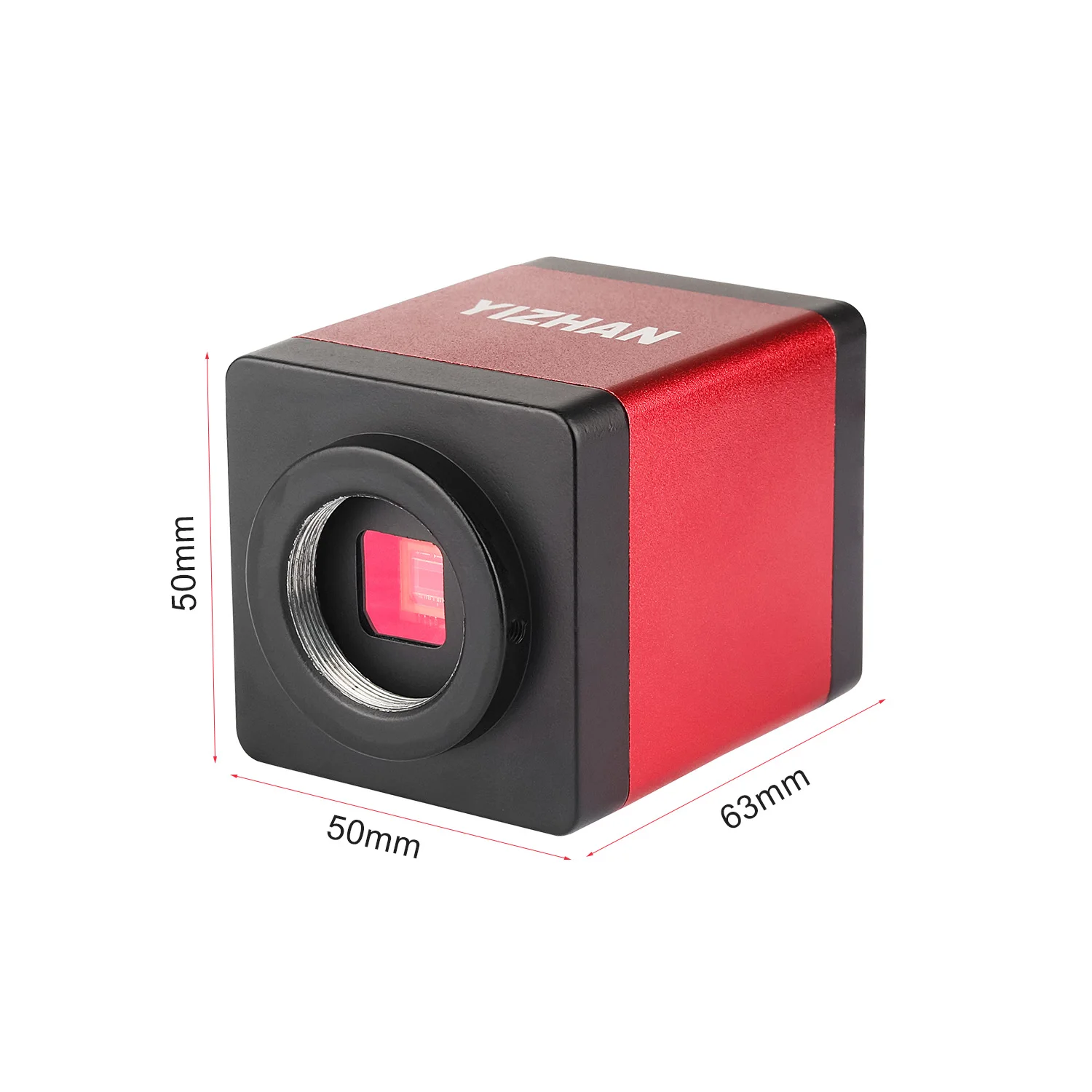

Overall dimensions: 75*50*50mm
Lens: CS
Working voltage: 12V
Working current: 150mA
Optical format: 1/3"
Pixel size: 2.8 Um * 2.8 um
Pixel array: 13MP
TV channels: 1200 TV channels
Maximum image FPS: 60FPS
Scan mode: Progressive
Shutter mode: electronic shutter
Dynamic range: 65dB
Radio S/N: 45dB
OSD language: English/Chinese
AWB mode: one-time/manual/auto white balance
HDR: customizable
Cross lines: supports 8 colors/adjustable line width
B/W: Allow
Negative: Allow
Flip mirror: supports left/right/up/down
Freeze: Leave it alone
Compare: Allow
Manual setting of brightness, contrast, sharpness, saturation: possible
Display resolution output: HDMI:16:9, 4:3
VGA:1920*1080 (supports various displays on the market)

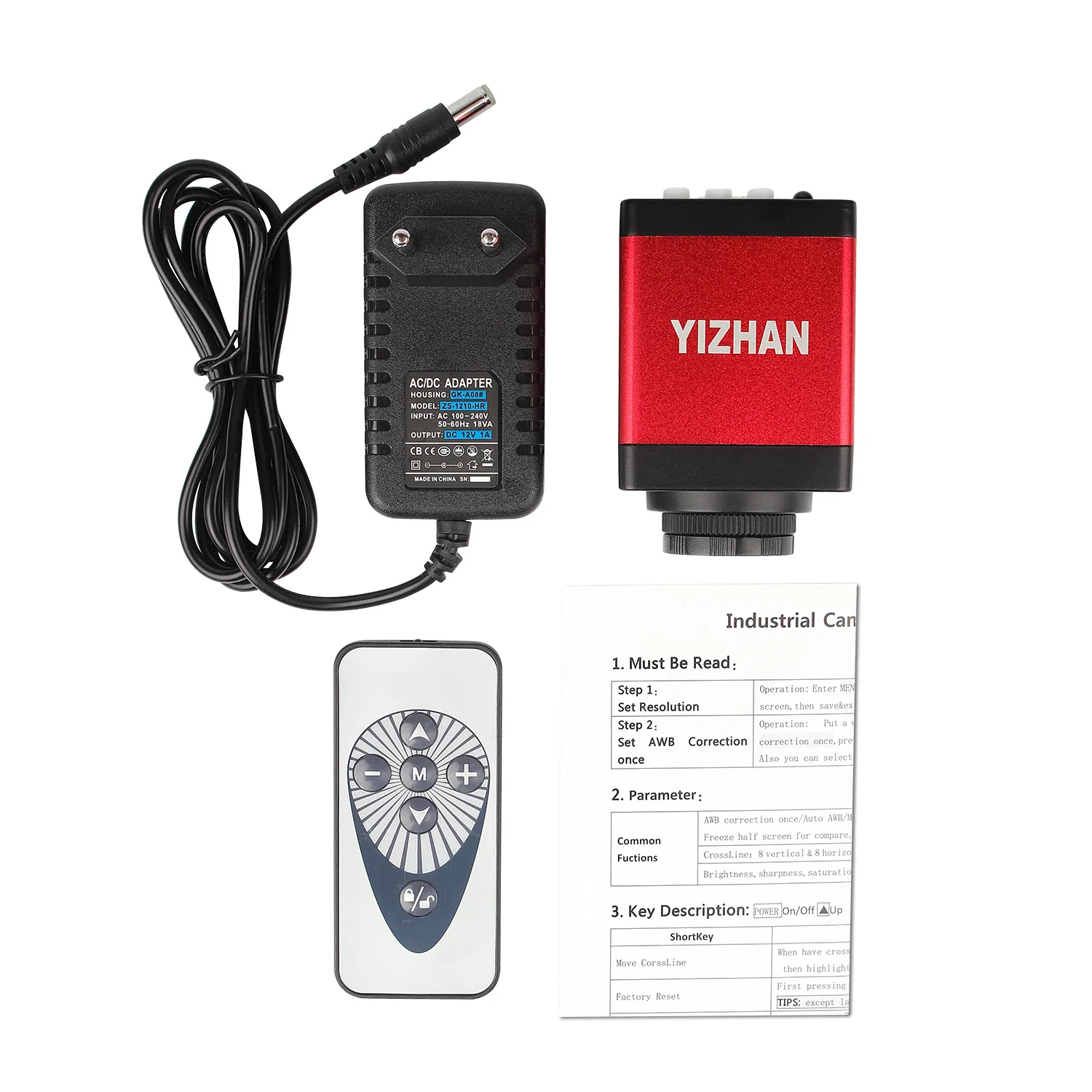

Camera package is included
1 x camera body
1x100V-240V power supply (free EU/UK/AU adapter)
1 x camera remote
1 x HDMI cable
1 x paper manual
HDMI TYPE-C 48MP SETS As Below
Sensor: 1/2.8 Sony 2 million pixel imported sensor
Pixel size: 2.9µm × 2.9µm
HDMI output: 1920*1080 60 frames
TYPE-C output: 1920*1080/30 1280*720/30 640*480/30 320*240/30 (MJPG)
Lens mount: C/CS
Exposure: automatic/manual/one-click exposure
Exposure compensation: support
White balance: automatic/manual/one-click white balance, supports RGB adjustable
Storage: supports up to 64GB
Input voltage: DC 5V
Line: supports 16 straight/vertical lines, adjustable color, thickness and position
Centerline: Support
Menu language: English/Chinese/Traditional Chinese
Remote control: supports remote control operation
Net weight: 150g
Gross weight: 350 grams
Product size: 68*68*47mm
Packaging size: 145*130*70mm
packing list:
1*A Set microscope camera
1*adapter
1*Type C data cable
1*HDMI cable
1*remote control
1*plastic ring
1*Instruction manual
